Vanes for your Generator project

To make your project even easier I now am offering cool looking Laser cut Vanes for you to use.
Your generator will look awesome with this Vane system hanging off the back.

Each Vane is Laser cut from a piece of sold 16 gauge plate steel.  It is rugged and ready to be primed and painted to any color you desire.

One Vane by itself is 18" long and 12" high and is a perfect size for the Tri-Nado AL, Quadraflex AL, and the Prairie Star AL rotor.

For the Power Disc AL and Tri-Nado Elite two are recommended mounted in the over and under configuration as shown below.

You can use the over and under design if you like the look of that layout regardless of the rotor you choose to fly.

The Tri-Nado Extreme is TOO big for these Vanes and you will still need to make your own for the Extreme.

Click on the images to view larger images

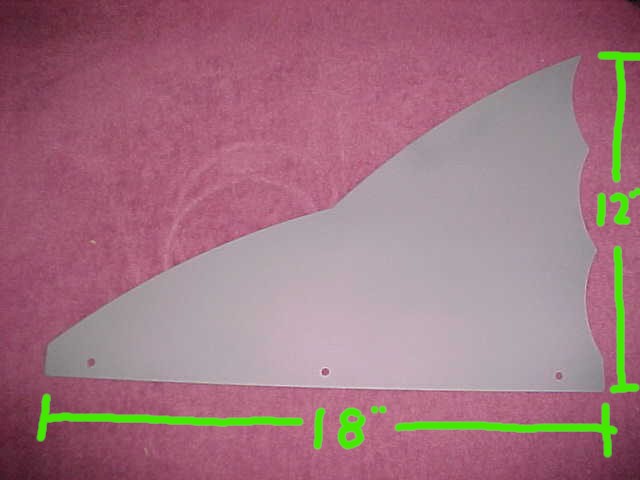

Single Vane

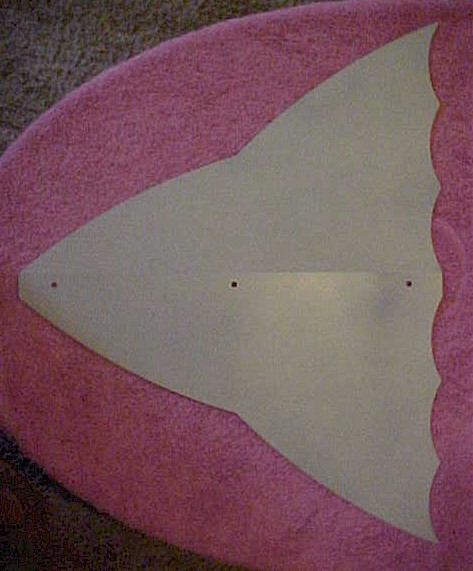

Double Vane (Over and Under)
A cool look no mater which rotor you fly

Laser cutting is the only way to cut 16 gauge metal and get a cool look like this!

Details:

Dimensions single 18" x 12" tall
Dimensions double 18" x 23 tall
Single Vane weight 1 pound 13.5 oz
Double Vane weight 3 pound 10.5 oz
Designed to mount perfectly to 1" square tubing.

Prices:

Single Vane $30.00
Two Vanes $50.00
